Fully automatic vacuum capping machine

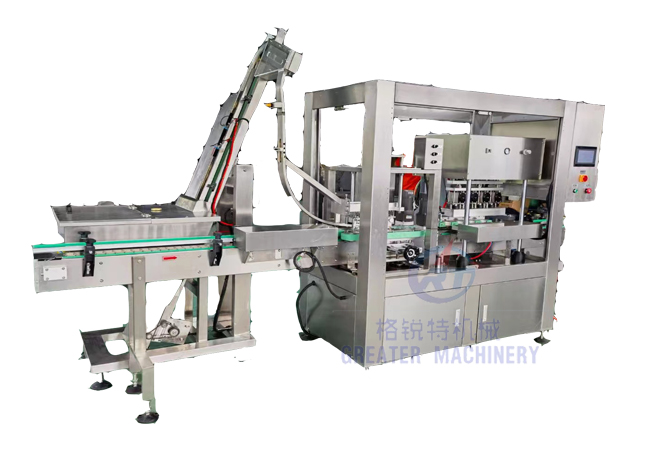

Fully automatic four head vacuum capping machine
Product Introduction:
This is a fully automatic glass bottle vacuum capping machine that can operate on an assembly line.
Technical parameters:
Model: GRT-ZXG160
Power: ≤ 3.5KW (including vacuum pump)
Production capacity: 2200-2400 bottles/hour
bottle cap: ￠ 20- ￠ 80mm (customized according to size)
Suitable bottle height: 80-250mm (customized according to size)
Screw cap torque: 5-20N M
Suitable bottle diameter: ￠ 40- ￠ 85mm
Vacuum degree: -50KPA-70KPA
Gas consumption: 0.6M3/0.7Mpa
Dimensions: Approximately 3500 × 1000 × 1900mm
Vacuum capping head: 4 pieces
Weight: Approximately 850kg
Machine features:
1. This machine integrates automatic lid closing and automatic vacuum sealing, with a high degree of automation;
2. By using a vacuum pump to evacuate, a high degree of vacuum can be ensured;
3. The torque and vacuum degree of the screw cap can be set as needed;
4. Replacing a small number of components can be suitable for vacuum capping of bottles of different shapes and sizes;
5. The main pneumatic and electrical components are selected from internationally renowned brands to ensure stable, reliable, and durable equipment performance.
