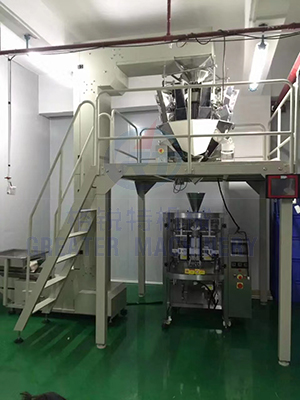

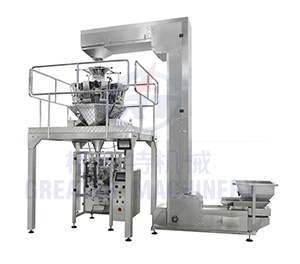

Fully automatic combination ten head weighing 420 vertical packaging machine

Complete set of combinations:
1. Packaging machine
2. High precision multi head electronic combination scale
3. Z-type material hoist
4. Electronic scale support platform
5. Finished product conveyor

Application scope:
Electronic scale cutting is suitable for packaging various granular products, such as potato chips, dumplings, peanuts, cookies, dried fruits, etc. It can also be used to package various hardware, plastic parts, etc.
Technical features:
1. Touchscreen display in both Chinese and English, with intuitive and simple operation.
2. The PLC computer control system runs more stably and can adjust any parameters without stopping the machine.
3. It can store ten sets of parameters, making it more accurate to change varieties.
4. Using servo motors for more accurate positioning.
5. Independent temperature control system with an accuracy of ± 1 ℃.
6. The horizontal and vertical sealing temperatures are independently controlled, which can be well applied to various packaging materials such as composite films and PE films.
7. The packaging styles are diverse, including back sealing, corner insertion, bagging, punching, etc.
8. The production of bags, sealing, packaging, and printing of dates is completed in one go.
9. The working environment is clean and the noise is low.

Technical parameters）
Type：TC-720
(Bag length：80-450mm(L)
Bag width：50-350mm(W)
Max width of roll film：720mm
Packing speed： 10-40bags/min

Measuring range：150-4000ml
Air consumption：0.65mpa
Gas consumption： 0.3m3/min
Power voltage：220V
Power ：3.6KW
Dimension：(L)1800mm×(W)1400mm×(H)1800mm

Deadwight of machine：900Kg
