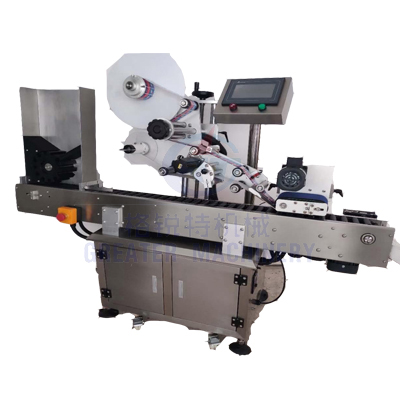

Name:Fully automatic horizontal labeling machine

一、Product Introduction:
The fully automatic horizontal rolling round bottle labeling machine is suitable for labeling cylindrical objects with unstable standing on the circumference or semicircle. It adopts horizontal conveying and horizontal labeling methods to increase stability and improve labeling efficiency.

二、Technical parameters:
Labeling accuracy: ± 0.5-1mm
Labeling speed: 40-200 pieces/minute
Applicable product diameter: φ25mm～φ90mm
Product and height: 25mm~300mm
Label size: Length: 20mm~290mm
Width (base paper width): 20mm~160mm
Inner diameter of label drum: Φ76 mm
Label outer diameter: Φ280 mm

Overall dimensions: approximately 1820mm × 1100mm × 1540mm
Applicable power supply: 220V/50HZ
Whole machine power: 570W (traction stepper), 980W (traction servo motor)
Air pressure (Mpa): 0.4-0.6Mpa
Whole machine weight: approximately 185Kg
Performance characteristics:
a. 7-inch color display touch screen, easy and convenient to operate, implementing human-machine dialogue.
b. High performance PLC control system, faster speed and more stable performance
c. Adopting Omron photoelectric sensor for object detection, the sensitivity of sensing objects is higher
d. Chain plate conveyor belt, stable operation, long service life.
e. Five axis positioning label feeder, with high precision and better stability in marking.
f. The conveyor belt adopts frequency converter speed regulation.
g. Bottom paper design ensures that the paper is not pulled apart.
