Granule Packaging Machine

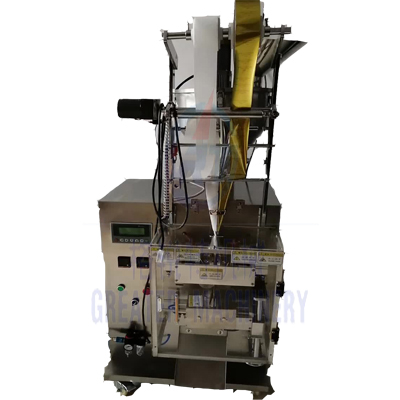

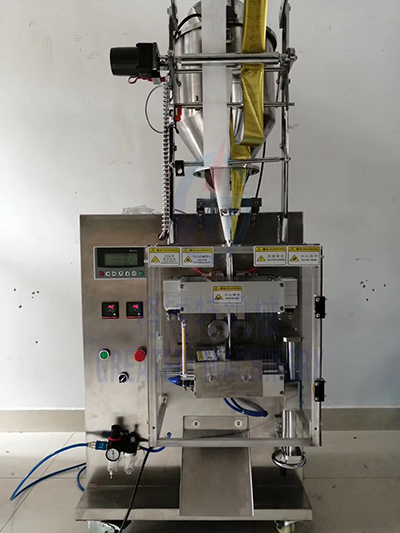

Name：Four sided foot bath bag granule packaging machine
一、 Product Introduction:
Mainly suitable for granular products and uniform coarse powders, such as coffee powder, white sugar, chicken essence, salt and other products.
二、 Technical parameters:
Model: GRT-60K
Production capacity: 40-60 bags per minute
Measurement range: determined according to the material
Bag size: (L) 40-160 (W) 40-100mm
Sealing form: back sealing with three sides or four sides
Total power: 1.2KW
Power supply voltage/Voltage: 380V/50Hz 220V/50-60Hz
Packaging materials: paper/polyethylene, polyester/aluminum foil/polyethylene, nylon/polyethylene, tea filter paper, etc
Net weight: 185kg
Dimensions: 800x900x1810mm
三、 Performance characteristics:
1. Text button screen, easy to operate and convenient.
2. Adopting PLC program control and photoelectric induction automatic tracking to ensure the integrity of the pattern.
3. Fully automatic measurement of the length of packaging bags, without the need for manual intervention in setting the length of packaging films (referring to packaging materials with colored labels).
4. Intelligent fault diagnosis and automatic display of error locations in Chinese (such as photoelectric errors, travel errors, etc.).
5. The intelligent temperature controller controls the temperature of the horizontal and vertical sealing molds through dual channels, with dual rotating arms for better sealing and heat sealing effects.
6. The swinging blade structure makes debugging more convenient, and the bags cut out have a neat and beautiful appearance.
