high speed capping machine

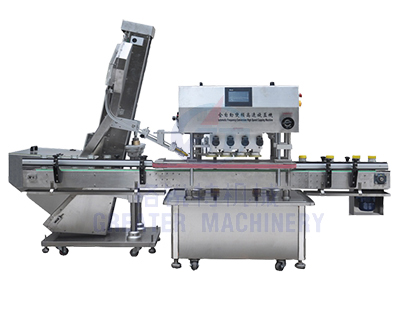

Name：Fully automatic eight wheel high-speed capping machine
一、 Product Introduction:
Mainly suitable for automatic capping, lowering, and trimming equipment in industries such as food, pharmaceuticals, and daily chemical products.
二、 Technical parameters:
Production capacity: 30-120 bottles/minute (adjustable)
Applicable bottle caps: plastic caps, metal caps, aluminum caps
Applicable bottle height: 100-370mm
Bottle cap diameter: 30-80
Motor power: 1.4KW
Weight: 450KG
Dimensions: 1000x850x1800mm
三、 Performance characteristics:
1. It mainly consists of a bottle conveying system, a lid sorting and capping mechanism, a bottle clamping conveyor, and a capping mechanism.
2. Using a rubbing and rotating cover, the structure is simple and the performance is stable. Compared to a transmission rotating cover, it solves problems such as slipping and damage to the cover.
3. Can achieve different specifications of bottles and bottle caps, one machine for multiple purposes.
4. At the same time, optional detection and removal of screw caps and bottle product mechanisms are available.
