Box-in-bag filling machine

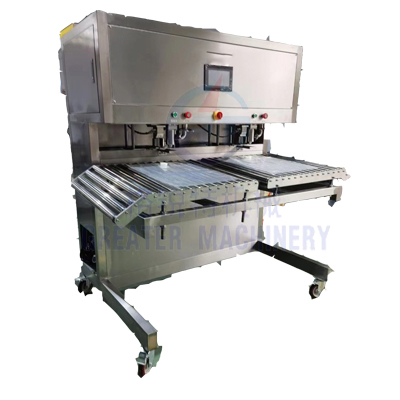

Name：Automatic double head box bag filling machine
一、 Product Introduction:
This machine is mainly suitable for aseptic filling of soft bags, and is suitable for quantitative filling of red wine, grape wine, milk, etc.
二、 Technical parameters:
Model: GRT-BIB-HZ
Filling range: 1L-50L
Filling accuracy: ± 0.5%
Filling speed: 240-400 bags/hour
Power: 1.2 KW
Liquid material inlet pressure: 0.3-0.35Mpa
Power supply voltage: 220V/50-60Hz
Work pressure: 0.4-0.6 Mpa
Gas consumption: 0.2m3/min
Machine size: 1750x1100x1680mm
三、 Local features:
1. The appearance of this machine is made of 304 stainless steel material, which is easy to clean and has a beautiful and elegant appearance. Plastic pipes are food grade.
2. This machine integrates automatic lid removal, vacuum pumping, quantitative filling, capping and other processes in one go, ensuring that the bag in the box is moved before capping after filling to prevent material overflow.
3. The measurement method adopts a flow meter.
4. PLC system, high degree of automation, touch screen interface, simple parameter setting.
5. This machine can vacuum the bags before filling to extend their shelf life. Nitrogen can be added after filling according to customer requirements.
Next: Automatic single head box bag filling machine
