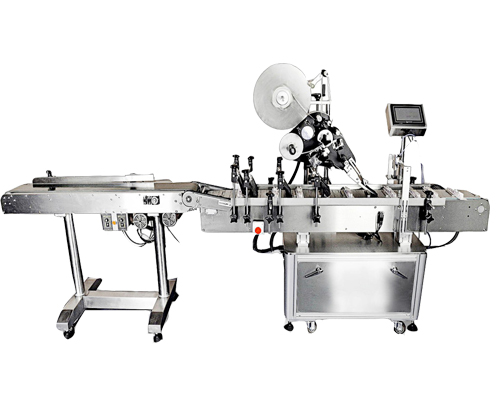

Fully automatic toothbrush box labeling machine

一、 Machine Introduction:
This machine is designed for objects with irregular and curved surfaces of toothbrush products to ensure labeling accuracy and effectiveness.

二、 Technical parameters:
Outer diameter of paper roll: φ 350mm
Inner diameter of paper roll: 76mm
Applicable label width: 130mm
Label length: 10~300mm
Material size: Length 200~240mm
Labeling speed: 21m/min
Labeling accuracy: ± 1mm

Belt width: 150mm
Working gas source: 0.5~0.7Mpa, 300L/min
Machine specifications: 2500 * 700 * 1400mm (length * width * height)
三、 Local performance characteristics:
The toothbrush flat labeling machine has a wide range of applications and can be easily adjusted to label the upper surface.
One machine can complete various types (flat, curved surfaces, etc.) and specifications of positioning stickers.
Designed for objects with irregular and curved surfaces of toothbrush products to ensure labeling accuracy and effectiveness.
A three-stage conveyor belt is used to transport materials, with functions such as material sorting, calibration, labeling, and pneumatic labeling.

 Optional transparent label detection electric eye improves detection accuracy.
Labeling parameter storage function (can pre store 50 sets of labeling parameters), no need to reset when changing materials.
 Intelligent tag management function, warning prompt function, optional image detection system, etc.
