Plane labeling machine

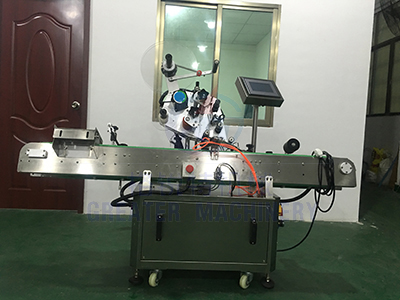

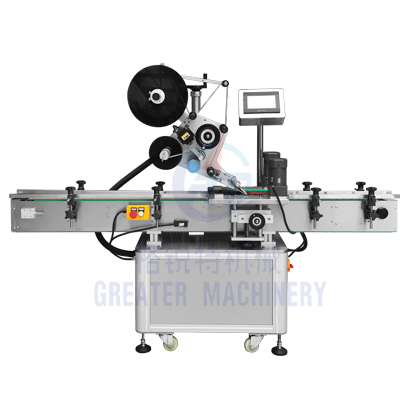

Name：Fully automatic flat labeling machine
一、Product Introduction:
The fully automatic flat labeling machine is suitable for various flat labeling products. Such as boxes, cardboard boxes, phone cases, lighters, and other products.
二、Detailed parameters:
Product size:
Length: 40mm to 400mm
Width: 40mm to 210mm
Thickness: 0.2mm to 150mm
Labeling accuracy (mm): ± 1mm
Labeling speed (pcs/min): 50-200pcs/min
Weight (kg): Approximately 180kg
◆Frequency (HZ): 50HZ
Voltage (V): 220V
Power (W): 940W
Machine size (mm) (length x width x height): 2000 x 880 x 1500
Local features:
1. Chinese and English touch screen, human-machine interface, simple and easy to understand.
2. Brand PLC system control, equipped with servo motors.
3. Using brand detection electric eyes to ensure stable labeling and high precision.
4. Simple design, which can meet customer requirements, and the sliding parts are connected by screw rods for easy adjustment, achieving "simplicity is not simple"
5. This machine adopts a foot wheel design and can be moved to various production occasions.
